Nationwide Distribution Supply LLC — a Las Vegas, Nevada-based FIBC and industrial bulk bag supplier with more than 30 years of specialized packaging experience — receives this question from procurement managers every week: which FIBC bag type is right for my application? The answer depends entirely on the static sensitivity of your material and the hazard classification of your operating environment. Type A, Type B, Type C, and Type D are four distinct electrostatic classifications, each engineered for a different risk profile. Choosing the wrong type is not a minor specification error; in a flammable dust or vapor environment, it can be the difference between a compliant operation and a fire incident. Our warehouse network spans 7+ states — California, Idaho, Texas, Tennessee, Alabama, Georgia, and New Jersey — and our technical team consults with buyers every day to make sure the right FIBC bag type ships to every facility. This guide explains what separates each type and how to choose correctly.

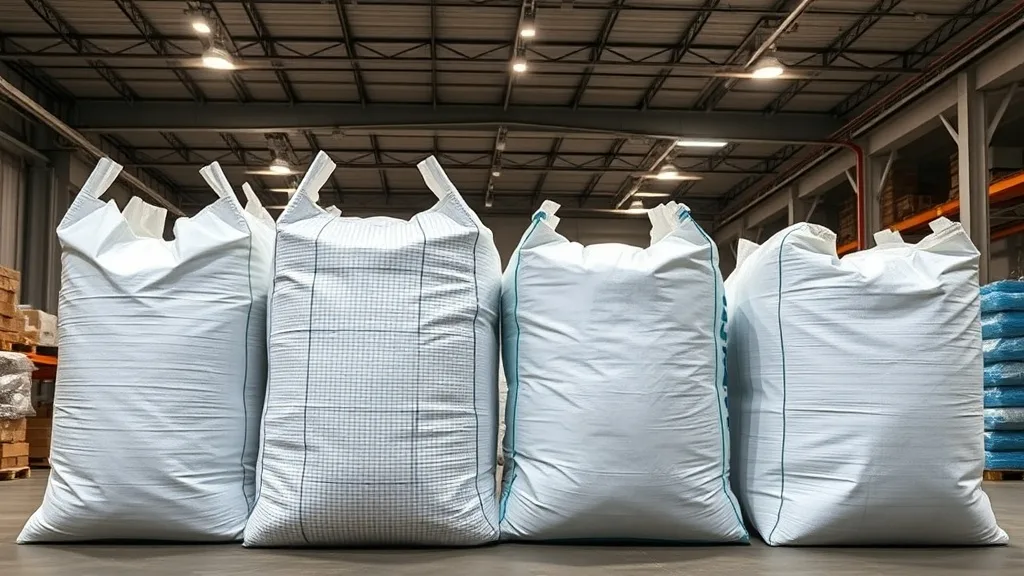

FIBC Bag Types Overview: A, B, C, and D Explained
FIBC bag types A, B, C, and D are four electrostatic safety classifications defined under the IEC 61340-4-4 static protection standard that determine which bulk materials and operating environments each flexible intermediate bulk container can safely handle. The classification system exists because woven polypropylene — the material every FIBC is built from — is an excellent electrical insulator. During filling and discharge operations, friction between powder particles and bag fabric generates static charge. That charge needs somewhere to go. In a flammable dust or vapor atmosphere, an uncontrolled static discharge becomes an ignition source. The four types respond to this problem differently: Type A provides no static protection and is safe only in non-hazardous environments; Type B limits the energy of discharges; Type C provides a controlled conductive path to ground; and Type D dissipates charge directly into the atmosphere. Understanding this hierarchy is non-negotiable before specifying a bulk bag for any combustible or flammable application.
| Type | Static Control Method | Grounding Required? | Safe Near Flammable Gas / Vapor? | Typical Applications |
|---|---|---|---|---|
| Type A | None | No | No | Agriculture, construction, general food (non-flammable) |
| Type B | Low breakdown voltage fabric (prevents propagating brush discharges) | No | No | Dry flammable powders; combustible dust without flammable gases |
| Type C | Interwoven conductive threads connected to verified earth ground | Yes — every operation | Yes, when grounded | Chemical processing, pharma, mining with flammable atmospheres |
| Type D | Quasi-conductive static-dissipative fabric (atmospheric corona discharge) | No | Yes | Flammable atmospheres; operations where reliable grounding is difficult |
Type A FIBC: Standard Bags for Non-Hazardous Materials
Type A FIBC bags are standard woven polypropylene bulk containers that offer no electrostatic protection and are approved only for non-flammable materials in environments free of flammable vapors, gases, and combustible dust. Because Type A bags provide zero static dissipation, charge accumulates freely on the fabric during filling and discharge — in a genuinely non-hazardous environment that poses no risk; in the wrong environment it is dangerous. Grain, sand, aggregate, seed, and cement are classic Type A applications: non-flammable bulk materials where static is a nuisance at worst. Type A FIBCs are the workhorse of agricultural operations, construction materials supply, and general industrial packaging — straightforward to specify, no special handling procedures required. For food-grade applications in non-flammable environments, Type A bags constructed from food-safe polypropylene also serve food processors, nutraceutical manufacturers, and agricultural commodity handlers where contamination prevention and FDA-compliant material contact are the primary requirements alongside safe working load performance.
Type B FIBC: Low-Voltage Bags for Combustible Dust Environments
Type B FIBC bags are constructed from fabric with a breakdown voltage not exceeding 6 kV per IEC 61340-4-4, preventing propagating brush discharges from igniting combustible dust while remaining entirely unsuitable for environments where flammable gases or vapors are present. The distinction from Type A is subtle but critically important for process safety: Type B fabric still accumulates charge, but its low breakdown voltage ensures the material breaks down electrically before a high-energy propagating brush discharge can form. Propagating brush discharges carry far more ignition energy than ordinary brush discharges and are a primary ignition risk in dusty industrial environments — Type B bags prevent them. They do not, however, protect against spark discharges from isolated conductors, and they offer no protection in Zone 0 or Zone 1 flammable gas atmospheres. Common Type B applications include fine chemical powders, agricultural dusts, pharmaceutical excipients, and food ingredient powders handled in vapor-free, well-ventilated environments. Always confirm the complete absence of flammable gases and solvents before specifying a Type B FIBC.
Type C vs Type D: Conductive and Anti-Static FIBC Bag Comparison
Type C conductive FIBC bags must be electrically grounded during filling and discharge to dissipate static through interwoven conducting threads, while Type D anti-static bags accomplish equivalent static protection without any grounding connection required. Both types are rated for use in flammable gas and vapor atmospheres under IEC 61340-4-4 — but the operational difference is significant in practice. A Type C bag carries an absolute grounding dependency: if an operator fails to connect the earthing strap before filling, the conducting threads in a disconnected Type C bag can concentrate charge in a way that is more hazardous than a standard Type A. Type D eliminates that human error vector entirely, dissipating charge into the atmosphere through quasi-conductive fabric via low-energy corona discharge — a mechanism best known through Crohmiq static-dissipative fabric technology. For Type C conductive FIBC bags to perform as designed, correct grounding procedures for Type C FIBCs must be followed on every fill and discharge cycle without exception. Where that discipline cannot be guaranteed, Type D anti-static FIBC bags are the operationally safer specification.
Choosing the Right FIBC Type: Application Examples and Decision Matrix
Selecting the correct FIBC bag type requires evaluating three variables: the static sensitivity of your bulk material, the presence of flammable vapors or gases in the operating environment, and the reliability of your facility’s grounding procedures. At Nationwide Distribution Supply LLC, our FIBC specification process begins exactly here — analyzing your material’s particle size, bulk density, and static sensitivity to recommend the right bag type, fabric weight, and lifting configuration for your process. This technical consultation approach reflects more than 30 years of serving agriculture, chemical, food processing, and mining operations as a focused FIBC specialist, not a general packaging company. As a practical framework: non-flammable materials start at Type A; combustible dust environments without flammable gases evaluate Type B; flammable gas or vapor environments with reliable grounding specify Type C; and uncertain grounding reliability requires Type D. Our food grade FIBC inventory is constructed from food-safe polypropylene meeting FDA and USDA guidelines for direct food contact — the right material for food processors navigating both static compliance and contamination requirements simultaneously. Explore our complete FIBC bulk bags line for in-stock options across all four types.
FAQ: Common Questions About FIBC Bag Type Selection
What is the most important factor when choosing between FIBC bag types?
The presence or absence of flammable gases, vapors, and combustible dust in your operating environment is the most critical factor in FIBC type selection. If no flammable atmosphere is possible, Type A is typically sufficient. If combustible dust is present, evaluate Type B at minimum. If flammable gases or vapors can be present, only Type C (when properly grounded) or Type D provides compliant protection under IEC 61340-4-4. Always conduct a documented risk assessment before finalizing your specification.
Can I use a Type B FIBC if flammable gases are sometimes present in my facility?
No. Type B FIBC bags are not approved for use in environments where flammable gases or vapors are present. Type B fabric prevents propagating brush discharges in combustible dust conditions but does not protect against the spark discharges capable of igniting a flammable gas atmosphere. If flammable gases may be present — even intermittently — you must specify Type C conductive bags with active grounding or Type D anti-static bags, both rated for gas zone environments under IEC 61340-4-4.
What is the difference between a conductive bag (Type C) and an anti-static bag (Type D)?
A Type C conductive FIBC must be electrically grounded during every fill and discharge operation; without the ground connection, it provides no static protection and may concentrate hazardous charge. A Type D anti-static FIBC dissipates static charge into the atmosphere through quasi-conductive fabric without any ground connection required. Both types are rated for flammable gas and vapor atmospheres when used correctly. Type D is preferred where grounding reliability cannot be guaranteed; Type C is standard in facilities with established, audited grounding procedures and trained personnel.
Does Nationwide Distribution Supply LLC carry all four FIBC bag types?
Yes. Nationwide Distribution Supply LLC stocks and custom manufactures all four FIBC bag types — A, B, C, and D — available for same-day or next-day shipping from warehouse locations across California, Idaho, Texas, Tennessee, Alabama, Georgia, and New Jersey. Food grade FIBC built from food-safe polypropylene meeting FDA and USDA guidelines are available in Type A and C configurations. Our technical team provides no-cost specification consulting to confirm the correct bag type, fabric weight, and safe working load before any order ships. Additional FIBC guidance is available through the FIBCA Bulk Bag Resource Center.
